Ball Transform Provider

In this section you will learn how to use BallTransformProvider in SkyRenderer.

Agenda:

  • Ball Transform Provider basics
  • Ball Transform Provider usage

Scene setup

Let's use custom scene composer to set up the scene.

    from skyrenderer.cases.utils.PROVIDER_scene import SeagullTransformProviderSceneComposer
    scene_composer = SeagullTransformProviderSceneComposer(antialiasing_level=64)
    scene_composer.setup_scene(render_width=1400, render_height=800)
    scene_composer.visualize()
ball-transform-provider_1_resourcesTutorial
2025-04-15 09:49:54,882 | skyrenderer.scene.renderer_context |  INFO: Root paths:
- root path: /home/skyengine/anaconda/lib/python3.6/site-packages/skyrenderer
- assets path: /dli/mount/assets
- config path: /home/skyengine/anaconda/lib/python3.6/site-packages/skyrenderer/config
- gpu sources path: /home/skyengine/anaconda/lib/python3.6/site-packages/skyrenderer/optix_sources/sources
- cache path: /dli/mount/cache
- ptx cache path: compiled_ptx/ptx
- ocio path: ocio_configs/aces_1.2/config.ocio

2025-04-15 09:49:55,092 | skyalembic.archive_manager |  WARNING: Loading not adapted alembic file

2025-04-15 09:49:55,096 | skyrenderer.basic_types.provider.unit_providers.hdr_texture_provider |  WARNING: Parameter light_adapt provided in HDR json is not supported

2025-04-15 09:49:55,096 | skyrenderer.basic_types.provider.unit_providers.hdr_texture_provider |  WARNING: Parameter color_adapt provided in HDR json is not supported

2025-04-15 09:49:57,221 | skyrenderer.utils.time_measurement |  INFO: Setup time: 2.12 seconds

2025-04-15 09:49:59,486 | skyrenderer.utils.time_measurement |  INFO: Context update time: 2.26 seconds

2025-04-15 09:50:02,171 | skyrenderer.utils.time_measurement |  INFO: Key points calculation time: 0 ms

2025-04-15 09:50:02,172 | skyrenderer.utils.time_measurement |  INFO: Render time: 2.69 seconds

Ball Transform Provider basics

Ball Transform Provider is a class responsible for distribution of transformations of the object within a
ball-shaped volume. It is connected with the SkyRenderer's randomization machine, hence assigning this particular
transform provider will make instances of the object randomized over frames.

Ball Transform Provider usage

To use BallTransformProvider, we need to set it up and modify locus definition via layout node's method
modify_locus_definition of the desired node. To visualize better how transformations are passed, we will
increase number of instances of the objects. BallTransformProvider will take care of randomization for each
instance.

NOTE: For detailed information about Scene Layout and Transformations check INTRO_SceneLayout,
INTRO_TransformProvider and TRANSFORMATIONS_Transform tutorials.

    from skyrenderer.basic_types.provider.transform_providers.ball_transform_provider import BallTransformProvider
    seagull_locator = scene_composer.renderer_context.layout().get_node("seagull_GEO_NUL")
    seagull_locator.n_instances = 10
    transform_provider = BallTransformProvider(scene_composer.renderer_context, radius=7)
    seagull_locator.modify_locus_definition(transform_provider=transform_provider)
    scene_composer.randomize_bird_animations()
    scene_composer.visualize(frame=0)
ball-transform-provider_2_resourcesTutorial
2025-04-15 09:50:02,679 | skyrenderer.utils.time_measurement |  INFO: Setup time: 205 ms

2025-04-15 09:50:05,307 | skyrenderer.utils.time_measurement |  INFO: Context update time: 2.63 seconds

2025-04-15 09:50:07,425 | skyrenderer.utils.time_measurement |  INFO: Key points calculation time: 0 ms

2025-04-15 09:50:07,426 | skyrenderer.utils.time_measurement |  INFO: Render time: 2.12 seconds

We will render second frame, to see how randomization machine causes change of transformations of the seagulls.
It is possible to adjust strategy of randomization for the Transform Provider.

NOTE: For detailed information how randomization in SkyRenderer works, check INTRO_Randomization tutorials.

    scene_composer.visualize(frame=1)
ball-transform-provider_3_resourcesTutorial
2025-04-15 09:50:07,855 | skyrenderer.utils.time_measurement |  INFO: Setup time: 129 ms

2025-04-15 09:50:10,534 | skyrenderer.utils.time_measurement |  INFO: Context update time: 2.68 seconds

2025-04-15 09:50:12,445 | skyrenderer.utils.time_measurement |  INFO: Key points calculation time: 0 ms

2025-04-15 09:50:12,446 | skyrenderer.utils.time_measurement |  INFO: Render time: 1.91 seconds

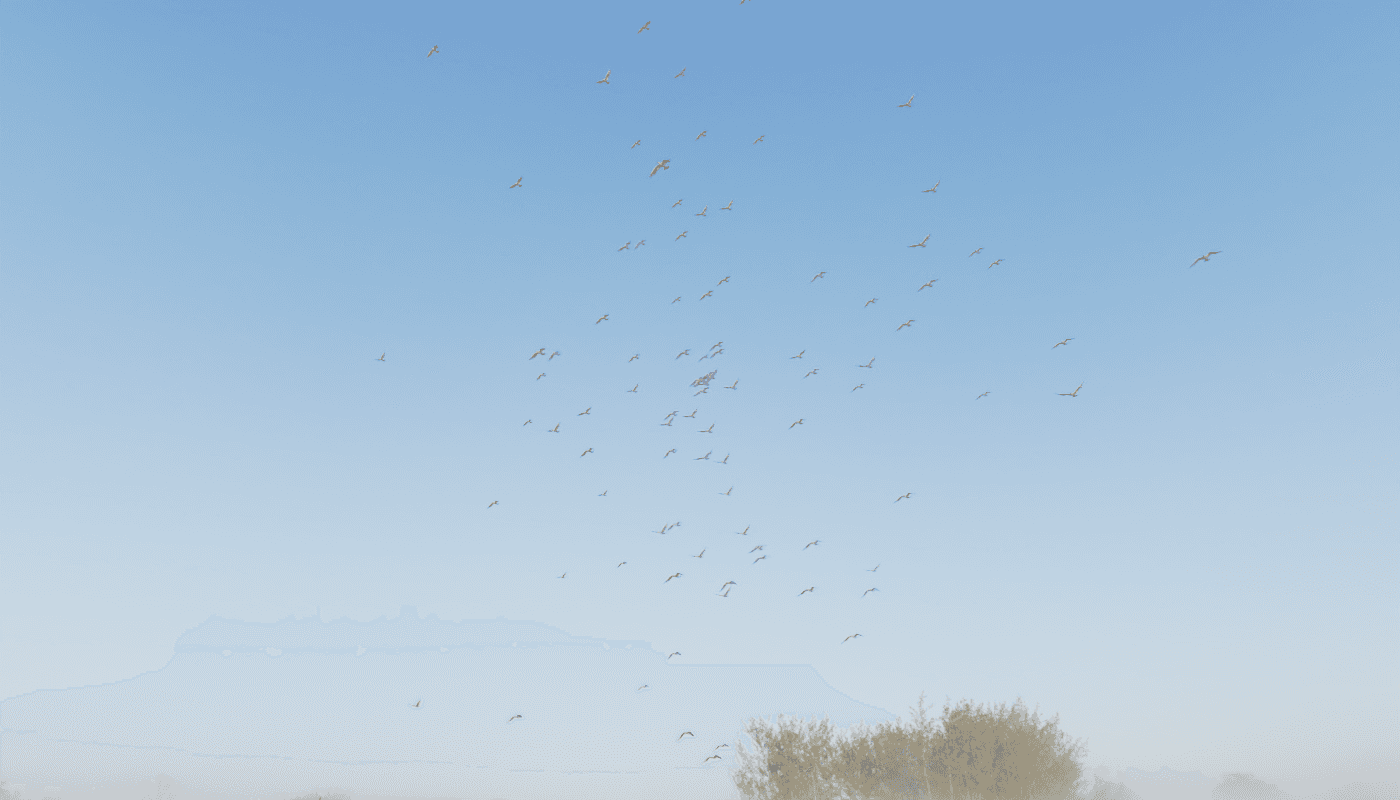

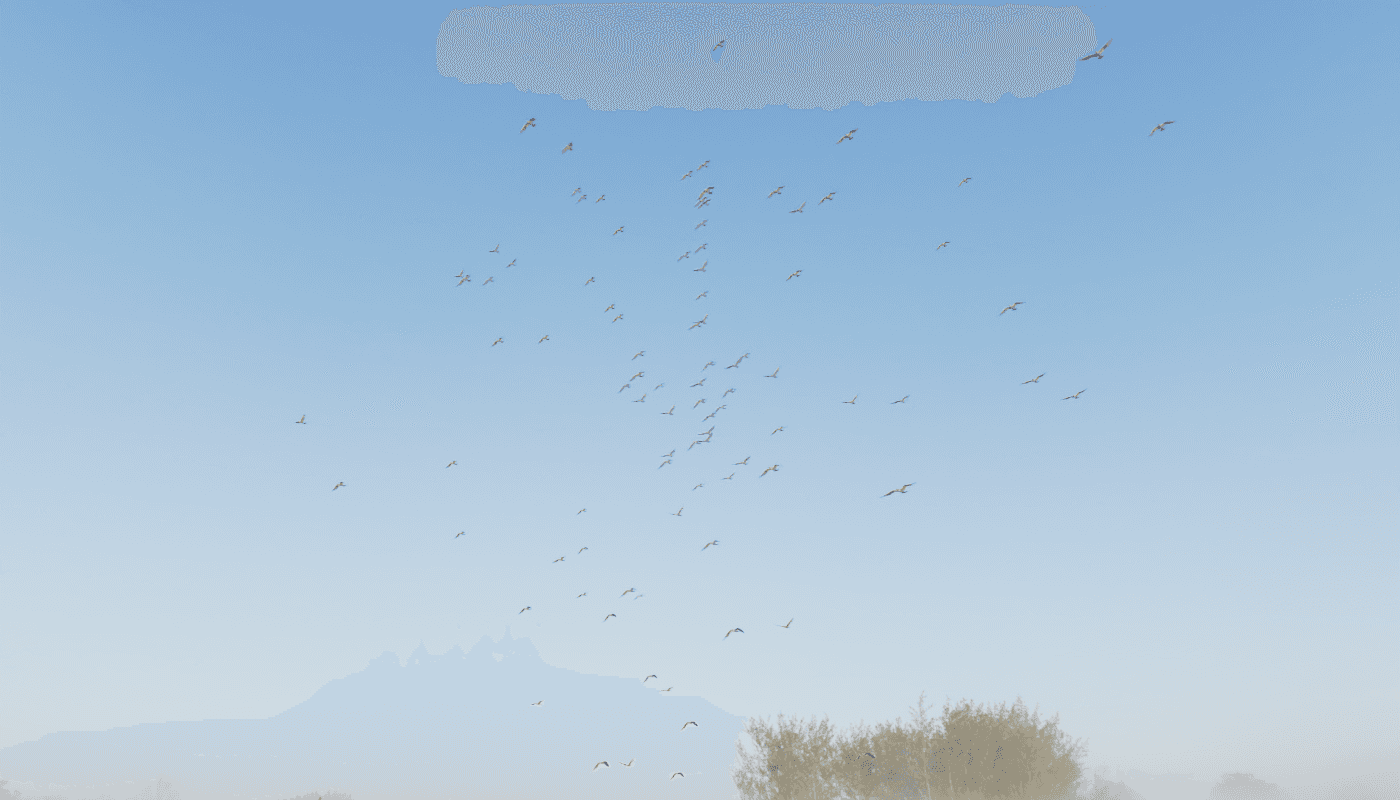

To make the ball-shaped cloud of objects more apparent, we will scale the objects down and create many more
instances of them, to fill the ball volume better.

    seagull_geometry = scene_composer.renderer_context.layout().get_node("seagull_GEO")
    seagull_geometry.apply_scale((0.2, 0.2, 0.2))
    seagull_locator.n_instances = 100
    transform_provider = BallTransformProvider(scene_composer.renderer_context, radius=10)
    seagull_locator.modify_locus_definition(transform_provider=transform_provider)
    scene_composer.visualize(frame=2)
    scene_composer.visualize(frame=3)
    scene_composer.visualize(frame=4)
ball-transform-provider_4_resourcesTutorial
ball-transform-provider_5_resourcesTutorial
ball-transform-provider_6_resourcesTutorial
2025-04-15 09:50:13,040 | skyrenderer.utils.time_measurement |  INFO: Setup time: 310 ms

2025-04-15 09:50:18,156 | skyrenderer.utils.time_measurement |  INFO: Context update time: 5.12 seconds

2025-04-15 09:50:20,051 | skyrenderer.utils.time_measurement |  INFO: Key points calculation time: 0 ms

2025-04-15 09:50:20,053 | skyrenderer.utils.time_measurement |  INFO: Render time: 1.90 seconds

2025-04-15 09:50:20,852 | skyrenderer.utils.time_measurement |  INFO: Setup time: 523 ms

2025-04-15 09:50:26,561 | skyrenderer.utils.time_measurement |  INFO: Context update time: 5.71 seconds

2025-04-15 09:50:28,414 | skyrenderer.utils.time_measurement |  INFO: Key points calculation time: 0 ms

2025-04-15 09:50:28,414 | skyrenderer.utils.time_measurement |  INFO: Render time: 1.85 seconds

2025-04-15 09:50:29,010 | skyrenderer.utils.time_measurement |  INFO: Setup time: 331 ms

2025-04-15 09:50:34,632 | skyrenderer.utils.time_measurement |  INFO: Context update time: 5.62 seconds

2025-04-15 09:50:39,915 | skyrenderer.utils.time_measurement |  INFO: Key points calculation time: 0 ms

2025-04-15 09:50:39,916 | skyrenderer.utils.time_measurement |  INFO: Render time: 5.28 seconds

Summary

In this section you have learnt:

  • BallTransformProvider distributes instances of the object within a ball-shaped volume.
  • BallTransformProvider needs to be assigned via SceneLayoutNode's modify_locus_definition method.
  • BallTransformProvider is connected with SkyRenderer's randomization machine enabling randomization of each
    instance transformations.
